Tungsten Carbide Tiles for Radial Bearings in Drilling Motors: A Basic Guide

Why Radial Bearing Performance Matters in Oil & Gas

An unplanned trip out of the hole to replace a failed mud motor can cost an operator $150,000 or more in a single day. This figure includes rig time, crew expenses, and lost production. For directional drilling operations, where the motor is the beating heart of the bottom-hole assembly, bearing reliability is critical. It is the single highest-impact variable in tool longevity and overall well economics.

At the center of that reliability equation are the radial bearings that support the motor's drive shaft. These components absorb severe side loads, operate in corrosive and abrasive drilling fluids, and must maintain tight tolerances at temperatures that can spike well beyond 300°F. The material lining those bearings determines how long the tool stays in the ground.

This guide covers the role of tungsten carbide (TC) tiles in radial bearing design, how to select the right tile configuration and grade for your application, and how pre-mounted tile sheets are streamlining bearing assembly for manufacturers across the industry.

How Mud Motor Radial Bearings Work

Mud motors, also known as positive displacement motors (PDMs) or downhole drilling motors, convert hydraulic energy from circulating drilling fluid into mechanical rotation at the drill bit. The power section generates torque through the interaction of a helical rotor and stator. Meanwhile, the bearing assembly below transmits that torque to the bit and handles both axial (thrust) and radial (side) loads.

Radial bearings specifically manage the lateral forces acting on the drive shaft. In mud-lubricated designs, the drilling fluid itself serves as the lubricant, flowing through the bearing to cool and clean the contact surfaces. This means the bearing material is in continuous contact with a slurry that may contain sand, calcium carbonate, barite, and other abrasive solids, all at pressures that can exceed 15,000 psi.

A typical radial bearing assembly consists of a rotor sleeve and a stator sleeve, each lined with wear-resistant material. The inner and outer surfaces must resist abrasion, erosion, and corrosion simultaneously. Bearing life under these conditions typically ranges from 300 to 400 circulating hours, though the right material selection can push that figure higher.

Why Tungsten Carbide Tiles?

Several materials have been used to line radial bearings over the decades. These include cast carbide grain matrices, chromium-plated steel, hardfacing overlays, and solid carbide sleeves. Tungsten carbide tiles have emerged as the dominant solution for high-performance applications. They offer the best combination of hardness, wear resistance, and thermal stability in a form factor that can be economically manufactured and replaced.

Key advantages of TC tiles over alternatives include:

• Wear resistance: Tungsten carbide is one of the hardest commercially available materials, with HRA values typically between 85.5 and 88.5. This translates to dramatically slower wear rates compared to steel or chrome-based surfaces, directly extending bearing life.

• Thermal stability: TC tiles can withstand transient temperatures in excess of 2,000°F (1,093°C) without losing structural integrity. In deep or high-temperature wells, this margin matters.

• Corrosion resistance: Tungsten carbide resists attack from most drilling fluids, including oil-based, water-based, and synthetic muds with aggressive chemical additives.

• Repairability: Because tiles are individually bonded to the bearing substrate, a worn bearing can be re-tiled at a fraction of the cost of replacing a solid carbide sleeve or an entire bearing assembly.




Compared to cast carbide grain matrices, where loose carbide powder is mixed with a binder and applied in a molten process, tiles offer a more predictable and uniform wear surface. Grain-style linings can perform well in enclosed, oil-lubricated environments but tend to erode faster in open mud-lubricated designs where fluid washout is a concern.

Round Tiles vs. Rectangular: Choosing the Right Configuration

Tile geometry is not purely cosmetic; it directly affects surface coverage, fluid dynamics across the bearing face, and erosion resistance.

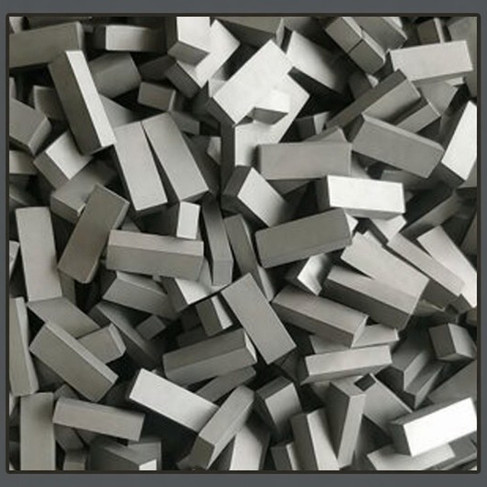

Rectangular tiles have been the traditional standard. They are straightforward to manufacture and lay out on flat substrates. However, rectangular configurations typically achieve only about 55% surface area coverage due to the gaps between tiles. These gaps create direct fluid pathways that can accelerate erosion of the underlying substrate.

Round tiles (buttons) represent the more modern approach. When packed in a tight hexagonal grid pattern, round tiles can achieve greater than 70% surface area coverage. Just as critically, the staggered arrangement eliminates straight-line fluid pathways across the bearing surface. Drilling fluid must follow a tortuous path between tiles, which significantly reduces erosive washout of the bond line and substrate.

Round tiles also offer a practical advantage in curved applications. Because each tile has a smaller, uniform contact patch, they conform more naturally to cylindrical bearing surfaces. This reduces stress concentrations that can develop at the corners of rectangular tiles during mandrel wrapping.

For most mud-lubricated radial bearing applications in directional drilling, round tiles in the 6 mm diameter range offer the best balance of surface coverage, erosion resistance, and manufacturing practicality.

Grade Selection: YG11C vs. YG15C

In practice, the choice between grades comes down to the drilling environment:

• Choose YG11C when the primary failure mode is abrasive wear. Deep vertical or slightly deviated wells drilled through hard, abrasive formations will benefit from the higher hardness and lower wear rate of the 11% cobalt grade. This is also the preferred grade when bearing clearances are tight and maintaining dimensional stability is critical.




• Choose YG15C when impact loading and shock are the dominant concerns. High-angle directional wells, curve sections, and applications where the motor is subjected to severe vibration and lateral shock benefit from the higher transverse rupture strength (TRS) of the 15% cobalt grade. The additional cobalt content absorbs impact energy without cracking.




Many operators and bearing manufacturers keep both grades in inventory. This allows them to match the tile to the anticipated well profile. Having both options available from a single supplier simplifies procurement and reduces lead-time risk.

Conclusion: The Importance of Choosing the Right Bearing

In the oil and gas industry, choosing the right radial bearing is crucial. The performance of these components directly impacts operational efficiency and cost-effectiveness. By understanding the benefits of tungsten carbide tiles and selecting the appropriate configurations and grades, operators can significantly enhance the reliability and longevity of their mud motors.

For businesses looking to solve problems, reduce downtime, and lower operating costs, investing in high-quality radial bearings is a strategic move. With the right solutions, you can ensure that your operations run smoothly and efficiently.
